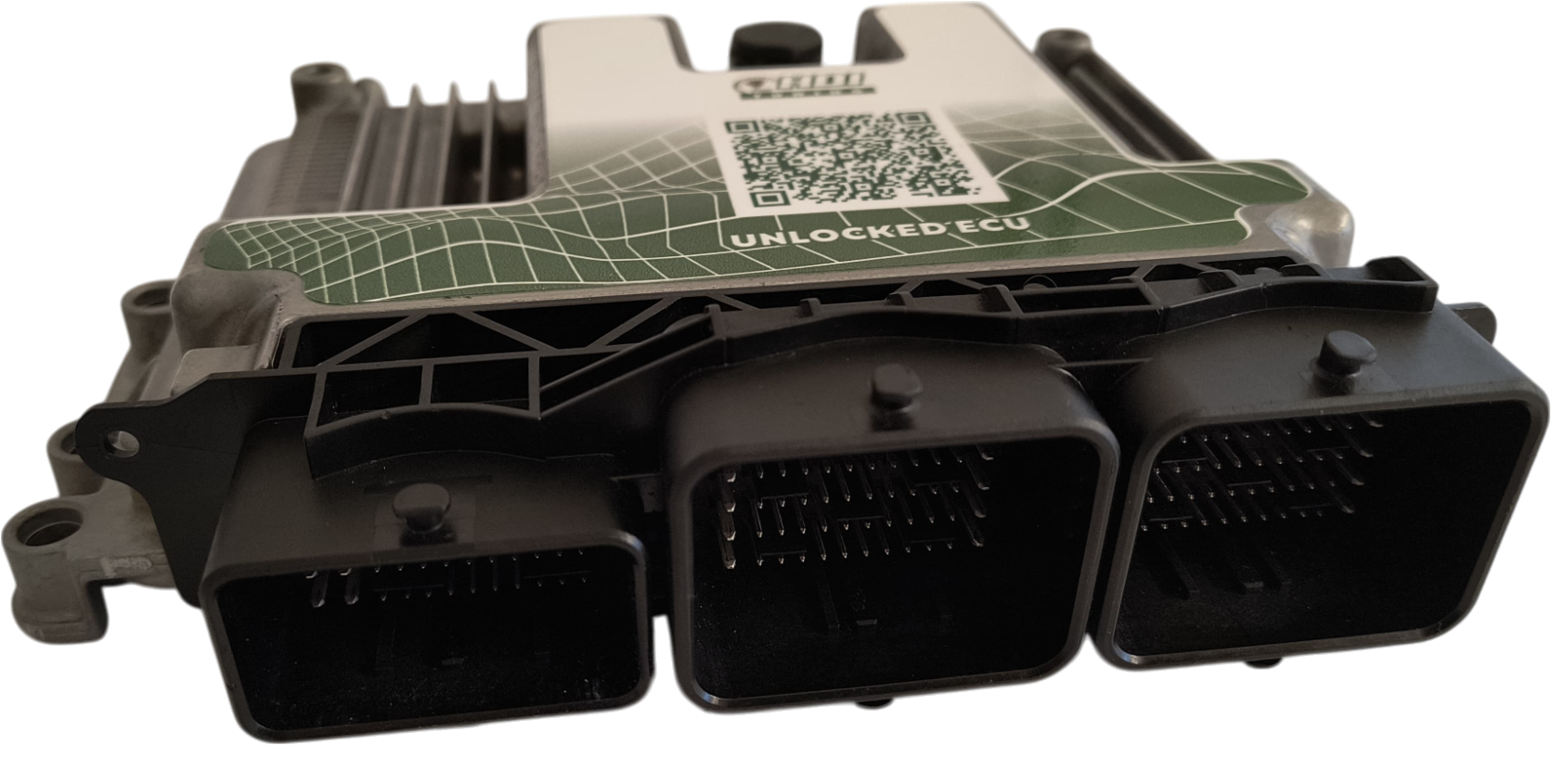

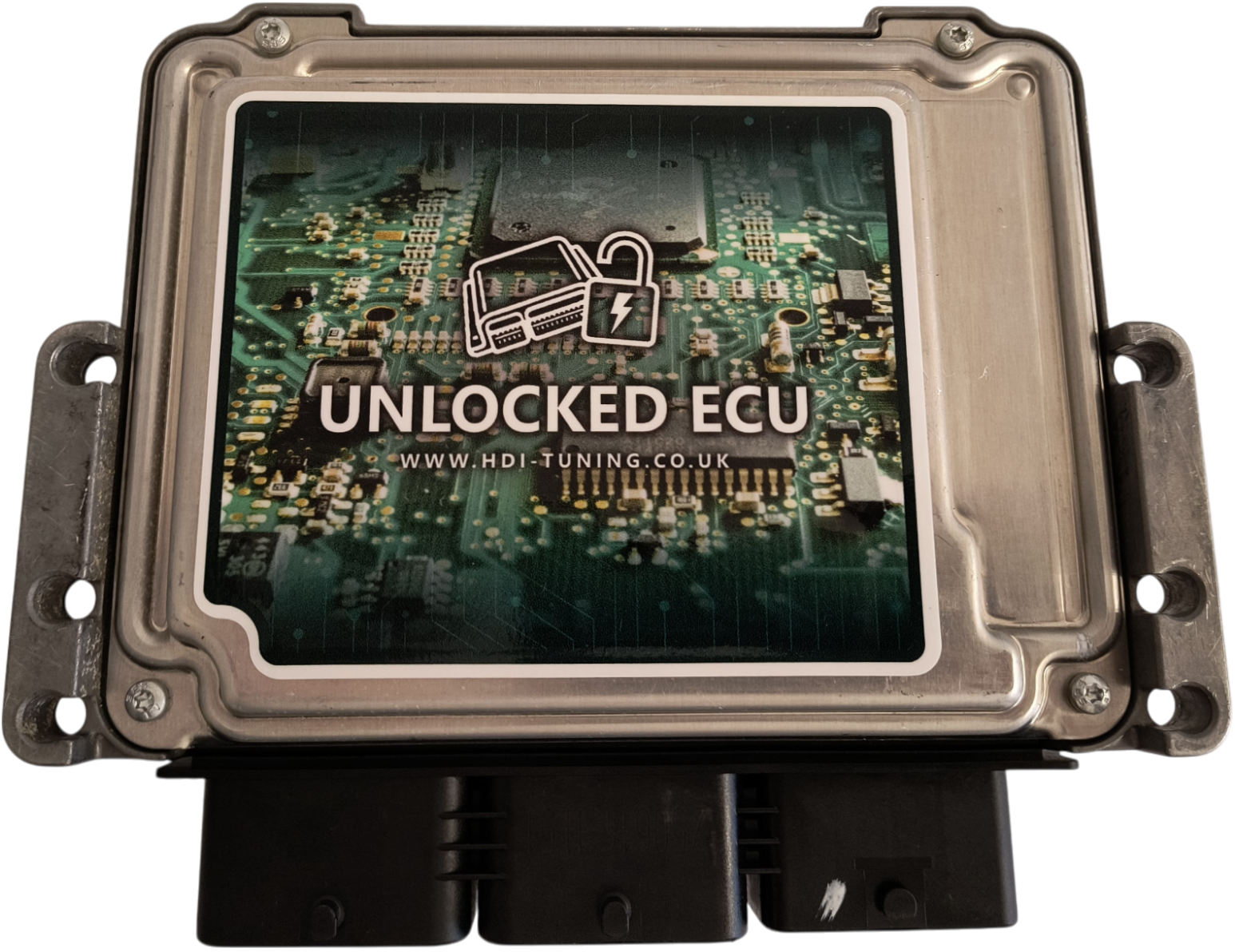

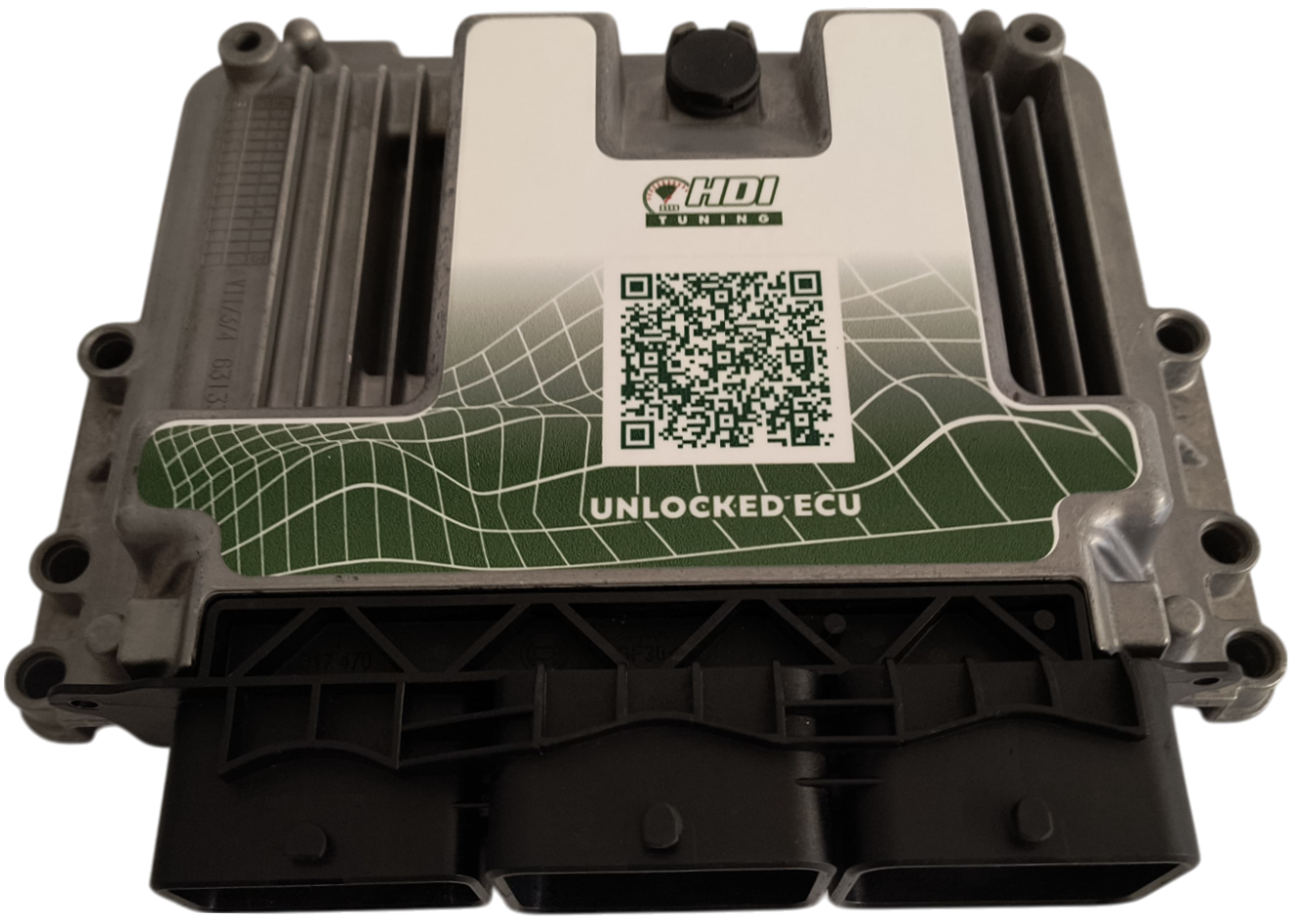

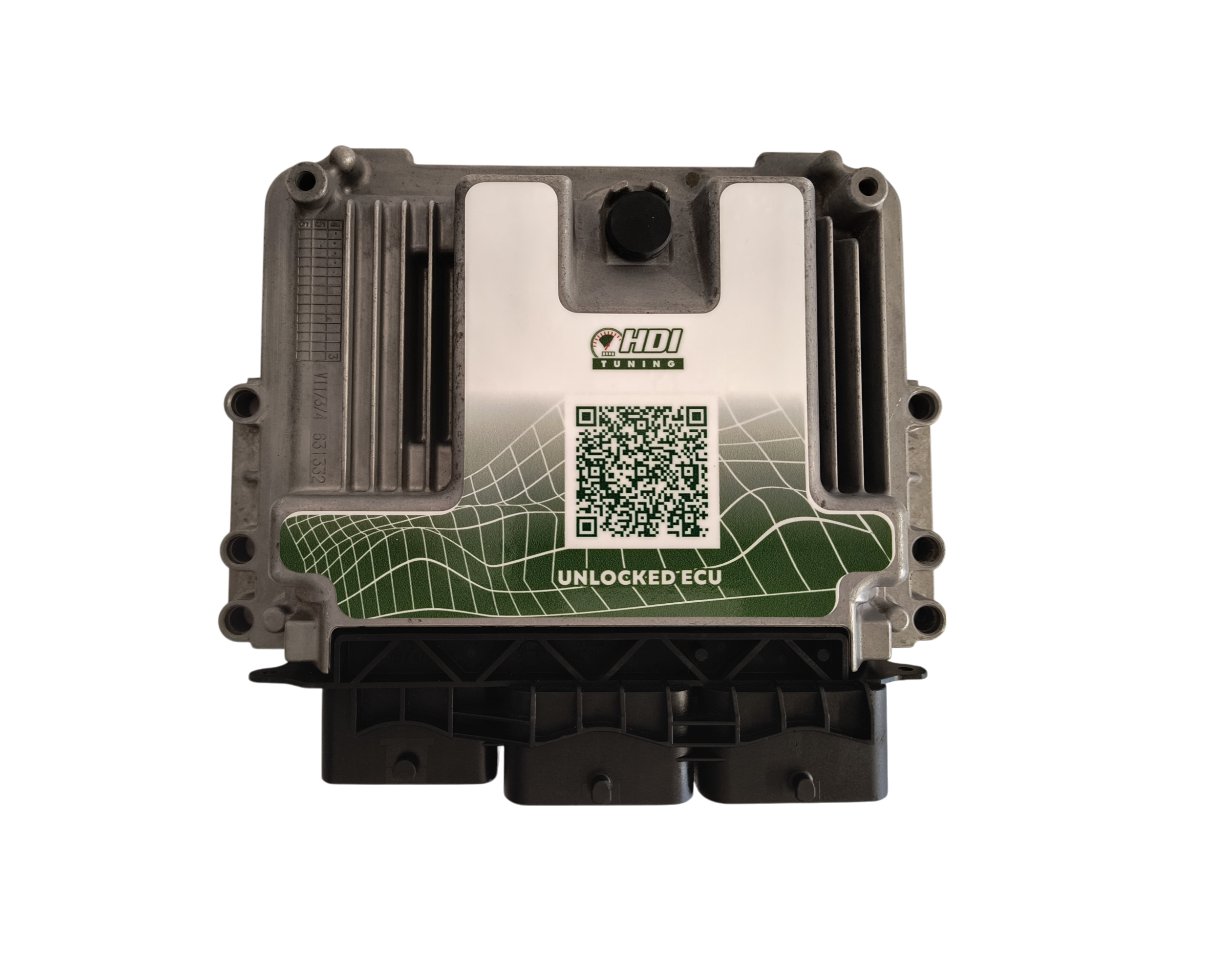

Bosch EDC17C10 1.6 HDI

€ 200.00 – € 250.00

For several years, we have diligently backed up the software of every ECU we’ve accessed via bench reading. As a result, we boast a comprehensive collection of almost every variant and every ECU HW variant available. If your specific part number isn’t listed on our webshop, which might not always be up-to-date, feel free to contact us via email.

What sets our unlocked ECUs apart from those offered by other companies?

Our programming method involves using bench service mode, ensuring the ECU’s original seal remains unbroken. We avoid soldering on the ECU board, thus eliminating any risk of board damage or overheating.

Our immobiliser deactivation technique is executed through the EEPROM, providing a thorough and reliable way to disable the immobiliser on the EDC17C10.
We supply superior quality remapped software, distinctly better than the cheaper versions often found from sellers with similar names on platforms like eBay. We’ve rectified numerous poor remaps from such companies.

We’ve introduced a unique service for custom ECU configuration setup, achieved through a specially developed bench rig. To our knowledge, no other company offers this service. This allows you to install the new ECU without the need for additional coding for features like ESP, cruise control, and AC, ensuring you won’t see any fault lights upon engine start – a common issue with cheaper alternatives.

We provide a two-year warranty and possess expertise in HDI engines, ensuring we’re always ready to offer help and support.

Clear
Quantity:
SKU: EDC17C10-1-3
Category:

Description

Our cutting-edge immobiliser bypass solutions provide the capability unlock ECUs from the Bosch EDC17C10 series. These ECUs can be installed in any vehicle (as long as the HW and SW variant matches), bypassing the need for immobiliser coding, ensuring seamless starting. However, for certain models, adjustments in the ECU’s settings might be necessary to accommodate features like cruise control, ESP, AC, and others. We’re excited to now include a bench coding service at no extra cost. However, we advise you to reach out with your precise requirements before you place your order.

Please provide us with the following details when placing your order:

The model or variant of your vehicle, identifiable by the 4-digit code located on the top right of the label (e.g., 1335, 1334).
Information about specific features in your vehicle, such as Cruise control (with or without speed limiter), ESP (notable by a button marked with skidding tyre marks if available), Air conditioning, Start-Stop system, ABS (which is standard), type of gearbox, and so forth.

Items available:
Hardware Software
0281017600-9676830080-1263 1037517755
0281015847-9674245180-1264 1037514382
0281015847-9674245180-1264 1037511644
0281015847-9674245180-1264 1037506830
0281015848-9674244680 1037510581
0281015848-9674244680-1263 1037510581
0281015848-9674244680-1263 1037507214
0281015848-9674244680-1264 1037510526
0281015849-9674254080-1263 1037506826
0281015849-9674254080-1264 1037510522
0281017333-9677013180-1264 1037514811
0281017333-9677013180-1264 1037514415
0281017333-9677913180-1263 1037515891
0281017333-9677913180-1263 1037514415
0281017334-9675352380 1037535876
0281017336-9677030080-1264 1037514419
0281017336-9677930080-1263 1037516425
0281017336-9677930080-1263 1037514419
0281017600-9676830080 1037515431
0281017600-9676830080-1263 1037517755
0281017862-9677031180 1037516406
0281017863-9677006780-1263 1037515871
0281018079 AV21-12A650-HJ 1037511275
0281018228-9666729580 1037524585
0281018228-9666729580 1037520627
0281018228-9678818280-1415 1037537110
0281018228-9678818280-1415-0602 1037537110
0281019817-9805947380-1335 1037528784
0281030545-9807886180-1335 1037540100
0281030545-9807886180-1335 1037533251
0281030546-9807885880-2234 1037537108
0281030546-9807885880-2234 1037535539
0281030546-9807885980-1264 1037540179
0281030546-9807885980-1264 1037537481
0281030546-9807885980-1264 1037535539
0281030546-9807885980-1334 1037537108
0281030546-9807885980-1334 1037535539
0281030546-9807885980-1335 1037537110
0281030546-9807885980-1335 1037535539
0281030546-9807885980-1409 1037537635
0281030546-9807885980-1415 1037545254
0281030548-9808016480-1335 1037537482

Additional information

Weight 0.85 kg
Dimensions 25 × 20 × 8 cm
Hardware & Software Variant

0281017600-9676830080, 0281015847-9674245180, 0281015848-9674244680, 0281015849-9674254080, 0281017333-9677013180, 0281017334-9675352380, 0281017336-9677030080, 0281017600-9676830080, 0281017862-9677031180, 0281017863-9677006780, 0281018079 AV21-12A650-HJ, 0281018228-9666729580, 0281018228-9666729580, 0281019817-9805947380, 0281019819-9805947680, 0281030545-9807886180, 0281030546-9807885880, 0281030548-9808016480
Engine Type

1.4 HDI 70BHP, 1.6HDI 75 BHP, 1.6 HDI 92 BHP
Vehicle Model

Citroen Berlingo, Citroen Dispatch, Citroen Jumpy, Peugeot Partner, Peugeot Expert, Citroen C3, Citroen C5, Citroen DS3, Citroen DS4, Citroen C3 Picasso, Citroen C4, Peugeot 207, Peugeot 308, Peugeot 3008, Peugeot 208, Peugeot 2008
ECU Settings

Unlocked ECU only Standard power settings, Stage 1 Remap, Stage 1 Remap DPF Delete, Stage 1 Remap EGR DPF Delete
